High Accuracy GNSS Module: Everything You Need to Know About the MultiNav Pro+
The High Accuracy GNSS Module Built for Builders Who Refuse to Compromise
Location data is only as good as the hardware that captures it. For drone operators, robotics engineers, field researchers, and embedded developers, choosing the right GNSS module is not a minor decision — it defines the reliability and precision of everything built on top of it. The MultiNav Pro+™ from RFOXiA is a high accuracy GNSS module engineered from the ground up for professional-grade applications at a price point that makes sense for serious makers and development teams alike.
This is not another generic GPS breakout. It is a tightly integrated, FCC-certified navigation module based on the latest u-blox silicon, capable of sub-1.5-meter accuracy at an 18Hz fix rate — real-time tracking speed that keeps up with fast-moving platforms without skipping a beat.
What Makes a GNSS Module "High Accuracy"?
Before diving into what the MultiNav Pro+ delivers, it is worth understanding what separates a high accuracy GNSS module from the dozens of commodity GPS modules flooding the market.
Accuracy vs. Precision: The Real Distinction
Most consumer-grade GPS modules advertise accuracy in the range of 2.5 to 5 meters CEP (Circular Error Probable). That might be acceptable for turn-by-turn driving directions, but it is nowhere near sufficient when you are:
- Executing autonomous drone waypoint missions
- Mapping terrain with photogrammetry payloads
- Running precision agriculture applications
- Tracking high-speed racing vehicles or FPV platforms
- Conducting geospatial research where position accuracy directly affects data quality

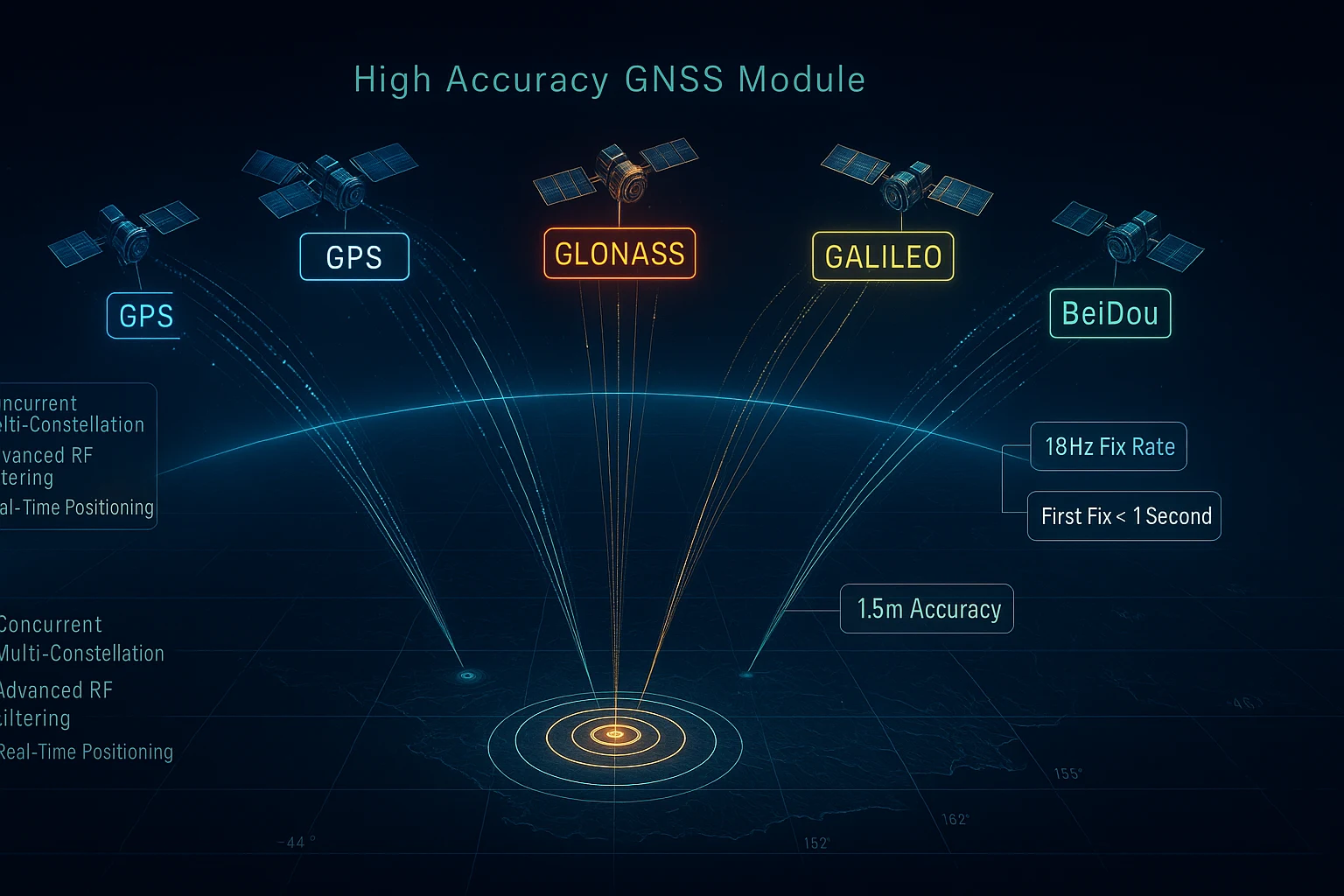

A high accuracy GNSS module closes this gap by combining several hardware and firmware-level advantages: multi-constellation reception, advanced filtering to minimize interference, higher chipset sensitivity, and faster position update rates. When all of these come together correctly, the result is a module that knows where it is — and knows it quickly.
Fix Rate: The Hidden Specification That Changes Everything
Accuracy figures get most of the attention, but fix rate is the specification that separates professional GNSS hardware from consumer-grade components. Fix rate describes how many times per second the module recalculates its position.
A standard GPS module updates at 1Hz — once per second. For a drone flying at 60 km/h, that means position data is already 16 meters stale by the time the next update arrives. At 5Hz, that gap drops to 3.3 meters. At 18Hz — the update rate delivered by the MultiNav Pro+ — position lag drops to under 1 meter even at high speed. For any application where the platform is moving, 18Hz is not a luxury. It is a fundamental requirement.
MultiNav Pro+™: Technical Specifications
| Specification | Value |
|---|---|
| Accuracy | < 1.5 meters CEP |
| Fix Rate | Up to 18Hz |
| Time to First Fix | 1 second (hot start) |
| Satellite Systems | GPS, GLONASS, Galileo, BeiDou (concurrent) |
| GNSS Chip | u-blox MIA-M10Q |
| Interface | UART, I2C |
| Current Draw | 25–30mA |
| Dimensions | 26mm × 22mm |
| Antenna | Integrated high-gain chip antenna |
| Certification | FCC Certified |
| Price | $49 |
Built on u-blox MIA-M10Q: Why Chipset Selection Matters
RFOXiA selected the u-blox MIA-M10Q as the core of the MultiNav Pro+ for a specific reason: it represents the current generation of professional GNSS silicon from the most trusted name in precision positioning hardware. u-blox modules are deployed across aviation, automotive, industrial automation, and defense applications worldwide. The MIA-M10Q brings that heritage into a compact, low-power package purpose-built for the kind of embedded and airborne applications RFOXiA's community builds.
The MIA-M10Q supports simultaneous multi-constellation operation — GPS, GLONASS, Galileo, and BeiDou at the same time. This is a critical advantage. When you are receiving signals from 30+ satellites across four independent global systems simultaneously, you have redundancy, better geometry (dilution of precision), and resilience against interference or signal blocking from nearby structures. The result is more consistent, more accurate positioning in the environments where GNSS is hardest: urban canyons, forested terrain, and anywhere signal paths are partially obstructed.
Real-World Performance: What 1.5m Accuracy and 18Hz Mean in Practice
Specifications on paper need to translate into real-world performance. Here is what the MultiNav Pro+™ delivers across different application categories:
Drone Operations and Autonomous Flight
For drone builders, a high accuracy GNSS module is the backbone of any autonomous capability. Whether you are flying preprogrammed waypoint missions, implementing return-to-home functionality, or building geofencing logic, the quality of your position data determines mission success.
With 1.5-meter accuracy and an 18Hz update rate, the MultiNav Pro+ provides position data fast enough and precise enough to command stable, accurate autonomous flight. The 1-second hot-start time to first fix means there is no waiting on the pad for satellites to lock — the module acquires a position fix quickly and maintains it reliably throughout the mission.
FPV Racing and High-Speed Tracking
FPV pilots building GPS-enabled racing quads or speed-recording setups need position data that keeps pace with the platform. At 18Hz, the MultiNav Pro+ is fast enough to meaningfully track a racing platform moving at 100+ km/h, delivering telemetry data that is actually correlated to real-time position rather than stale estimates.
Precision Agriculture
Agriculture applications demand repeatable, accurate positioning for spray path planning, yield mapping, and automated equipment guidance. The sub-1.5-meter accuracy of the MultiNav Pro+ places it firmly in the range suitable for precision ag applications without requiring expensive RTK augmentation in many use cases.
Field Research and Environmental Monitoring
Researchers deploying sensors across wide field areas need to know where their data was collected. Combined with the RFOXiA Sensors Module — which captures temperature, humidity, pressure, air quality, and inertial data — the MultiNav Pro+ geotags every reading with accurate position data, creating scientifically valid, location-verified datasets.
Robotics and Ground Vehicles
Robotics engineers building outdoor navigation systems benefit from the module's compact 26×22mm footprint and flexible UART/I2C interface. It integrates cleanly into existing microcontroller setups, adding professional-grade positioning without demanding significant board space or power budget.
RF Design and Interference Rejection
A GNSS chip is only as capable as the RF environment it operates in. The MultiNav Pro+ incorporates proprietary RF/microwave microstrip filter technology that actively attenuates out-of-band interference before it reaches the receiver. This matters enormously in real deployments.
Drones carry ESCs, video transmitters, FPV cameras, and high-current power systems — all of which radiate RF noise across a wide spectrum. A poorly designed GNSS frontend will struggle in this environment, producing degraded accuracy or complete fix loss. The MultiNav Pro+'s onboard filtering technology maintains clean signal reception even in electrically noisy platforms.
The integrated high-gain chip antenna contributes to this resilience. Rather than relying on an external patch antenna that adds size and connector reliability concerns, the module's chip antenna is optimized specifically for the L1 GNSS band and provides strong signal gain in a fraction of the physical footprint.
Efficiency and Compact Form Factor
For battery-powered applications, power budget is not negotiable. The MultiNav Pro+ runs the full four-constellation simultaneous reception mode at just 25–30mA — a remarkably efficient operating profile for a module delivering this level of performance. At this draw level, a 2000mAh LiPo cell can power the module continuously for over 60 hours, making it practical for extended field deployments and long-duration sensor networks.
The 26mm × 22mm form factor is genuinely compact. It integrates cleanly onto custom PCBs, fits into tight enclosures, and adds minimal mass to weight-sensitive drone builds. For hardware engineers designing a carrier board, the combination of compact size, low power draw, and dual-interface (UART and I2C) flexibility makes the MultiNav Pro+ one of the most practical precision GNSS solutions available in this class.
You can explore the full specifications and order the RFOXiA Accurate GNSS Module directly from the product page.
Integration: UART, I2C, and Ready-to-Use Software Library
One of the friction points with professional GNSS hardware has traditionally been integration complexity. The MultiNav Pro+ removes that barrier through two design decisions:
Dual Interface Support: Both UART and I2C are supported natively. UART is the traditional standard for NMEA sentence output and is compatible with virtually every microcontroller and single-board computer platform. I2C opens up multi-device bus configurations where multiple sensors share a common interface. Developers can choose whichever protocol fits their existing architecture.
Ready Software Library: The MultiNav Pro+ ships with a complete software library compatible with Arduino IDE and standard embedded toolchains. For most developers, integrating the module means installing a library and calling a few initialization functions — not writing low-level serial parsers from scratch. This translates directly into faster prototyping and more reliable production implementations.
For developers working within the RFOXiA ecosystem, the MultiNav Pro+ integrates directly with the AI Firmware Builder in RFOXiA Club — describe your application in plain language, and the AI generates production-ready firmware incorporating the GNSS module alongside the BLE, Sensors, and Power modules. That level of integration shortens development timelines from weeks to hours.
The RFOXiA Ecosystem Advantage
The MultiNav Pro+ is powerful as a standalone module. It becomes transformative as part of the broader RFOXiA hardware ecosystem.
When paired with the RFOXiA BLE Module — which achieves 5km ground-to-ground and 15-20km man-to-drone range — real-time GPS telemetry can be streamed over long-range Bluetooth links without any cellular or Wi-Fi infrastructure. Your drone's position is transmitted directly to your phone at the edge of your control range, with no third-party servers, no subscription fees, and no internet dependency.
The RFOXiA Connect app displays live GPS position on an integrated map alongside sensor data, giving operators a complete real-time picture of their platform's location, environment, and status. The app works entirely offline — no signal required in the field.
For developers building the complete stack, the Developer Bundle combines the BLE Module, GNSS Module, Sensors Module, and Power/Program Kit into a single integrated ecosystem. It is the fastest path from hardware development to deployed product in this category.
If you are ready to add a genuinely capable high accuracy GNSS module to your next project, the RFOXiA Accurate GNSS Module is available now at $49 with immediate inventory in stock.
FCC Certification: Why It Matters for Your Project
Every RFOXiA module — including the MultiNav Pro+ — carries FCC certification. For hobbyist prototypes that never leave the bench, certification is a nice-to-have. For any application that reaches production, certification is non-negotiable.
FCC-certified hardware protects you in three ways:
- Regulatory compliance — your end product can be legally deployed and sold in the United States without additional RF testing if you use certified modules
- Distribution channel access — DigiKey, Mouser, and other professional distributors require FCC certification for RF products
- Customer confidence — enterprise buyers, research institutions, and commercial operators expect certified hardware
The MultiNav Pro+'s FCC certification means you can take it from prototype to production with confidence that the foundational hardware meets the standards your market demands.
Who Should Use the MultiNav Pro+?
This module is the right choice if you are:
- A drone builder needing reliable, fast-updating positioning for autonomous flight or telemetry
- An FPV pilot adding GPS return-to-home, speed logging, or position hold to your build
- A robotics engineer building outdoor navigation systems that need real-world position accuracy
- A researcher or scientist deploying environmental sensor arrays that require geotagged data
- A precision agriculture developer building guidance or mapping systems
- An IoT developer creating asset tracking, fleet management, or logistics monitoring applications
- A hardware developer who wants professional-grade GNSS without the premium price tag of industrial-tier solutions
If any of those descriptions fit your next project, the RFOXiA Accurate GNSS Module deserves a place in your design.
What Is Included in the Package
Each MultiNav Pro+ order includes:
- 1× MultiNav Pro+™ GNSS Module — fully assembled and tested
- Quick Start Guide — step-by-step setup and installation instructions
- Access to RFOXiA Club — Dev Hub resources, software library, AI Firmware Builder, and community support
For developers building a complete wireless platform, the module is also available as part of the Developer Bundle alongside the BLE Module, Sensors Module, and Power/Program Kit.
Final Verdict: The Right High Accuracy GNSS Module for Serious Builders
The MultiNav Pro+™ occupies a specific and important position in the GNSS module landscape. It delivers accuracy and update rates that match industrial-grade hardware at a price accessible to development teams, independent builders, and researchers operating without enterprise procurement budgets.
The combination of u-blox MIA-M10Q silicon, concurrent four-constellation operation, 18Hz fix rate, 1.5-meter accuracy, sub-30mA power consumption, and FCC certification makes it one of the most capable high accuracy GNSS modules available in this class. The onboard RF filtering, integrated chip antenna, and dual UART/I2C interface eliminate the design compromises that often accompany affordable GNSS hardware.
For builders who want precision positioning that actually keeps pace with their application — and a complete ecosystem to build around it — the MultiNav Pro+ is the professional choice at a maker price.
$49. FCC certified. In stock. Ready to ship.
Explore specifications, integration resources, and order directly: RFOXiA Accurate GNSS Module
RFOXiA — Democratizing Connectivity and Computing Power.
Written by: Moamen Mohamed LinkedIn
