High Precision GPS Module IoT Developers Have Been Waiting For
The MultiNav Pro+™: Redefining What a High Precision GPS Module IoT Projects Can Achieve
In the world of connected devices, autonomous systems, and precision field work, location data is everything. Whether you are building a drone that needs to hold a precise waypoint, a wearable that tracks athletic performance, or an environmental sensor node that must validate its outdoor position, the quality of your GNSS module determines the quality of everything downstream. The market has long been divided between cheap, inaccurate commodity GPS chips and expensive professional-grade receivers that most developers simply cannot afford.
The MultiNav Pro+™ from RFOXiA was built to end that division.
This is the high precision GPS module IoT engineers, drone builders, researchers, and hardware developers have needed — a module that delivers sub-1.5-meter accuracy at an 18Hz fix rate, powered by the u-blox MIA-M10Q chipset, with concurrent support for GPS, Galileo, GLONASS, and BeiDou satellite constellations, all in a compact 26mm × 22mm form factor priced at $49.
This guide covers everything you need to know: the technical specifications, real-world use cases, integration approach, software ecosystem, and why this module outperforms everything else in its price class.
Why GNSS Accuracy Matters More Than You Think
Most developers picking up a GPS module for the first time underestimate how much accuracy variation exists between products. A standard commodity GPS module — the kind sold on breakout boards for a few dollars — typically delivers 2.5 to 5 meter accuracy under ideal conditions, and considerably worse in urban canyons, near buildings, or during satellite transitions. At a typical update rate of 1Hz, these modules refresh position data once per second.
For a slow-moving IoT asset tracker, that may be acceptable. For a drone traveling at 60 km/h, a 1Hz update rate means your position data is already 17 meters stale by the time the next fix arrives. For precision agriculture, a 5-meter error renders automated guidance systems useless.
This is the gap the MultiNav Pro+™ fills. It is not a toy GPS chip. It is a precision-grade high precision GPS module IoT platform engineered for applications where accuracy, fix speed, and reliability directly determine mission success.
Core Specifications: What Makes the MultiNav Pro+™ Different
At the heart of the MultiNav Pro+™ is the u-blox MIA-M10Q, one of the most capable GNSS chipsets available for integration into compact hardware. This is the same chipset family used in professional survey equipment and commercial drone navigation systems — now accessible to individual developers at a fraction of traditional pricing.
Accuracy: Less Than 1.5 Meters
The MultiNav Pro+™ achieves less than 1.5 meters of horizontal position accuracy in standard open-sky conditions. This is not a theoretical maximum — it is the operational performance specification. For comparison, a standard off-the-shelf GPS module typically delivers 2.5m to 5m accuracy. The MultiNav Pro+™ is up to three times more accurate than what most developers have previously used in their projects.
Fix Rate: 18Hz
With an 18Hz position update rate, the MultiNav Pro+™ delivers 18 fresh location readings every second. For fast-moving platforms like racing drones, high-speed robotics, or precision vehicle guidance systems, this update rate ensures your navigation algorithms always have current, relevant data to act on. Standard modules deliver 1Hz. Some better modules reach 5-10Hz. The MultiNav Pro+™ at 18Hz is in a class of its own at this price point.
First Fix: 1 Second
Time to first fix (TTFF) in hot-start conditions is approximately 1 second. Cold start performance is also optimized through the MIA-M10Q's advanced acquisition engine. When you power on a system equipped with this module, it is ready to navigate almost immediately.

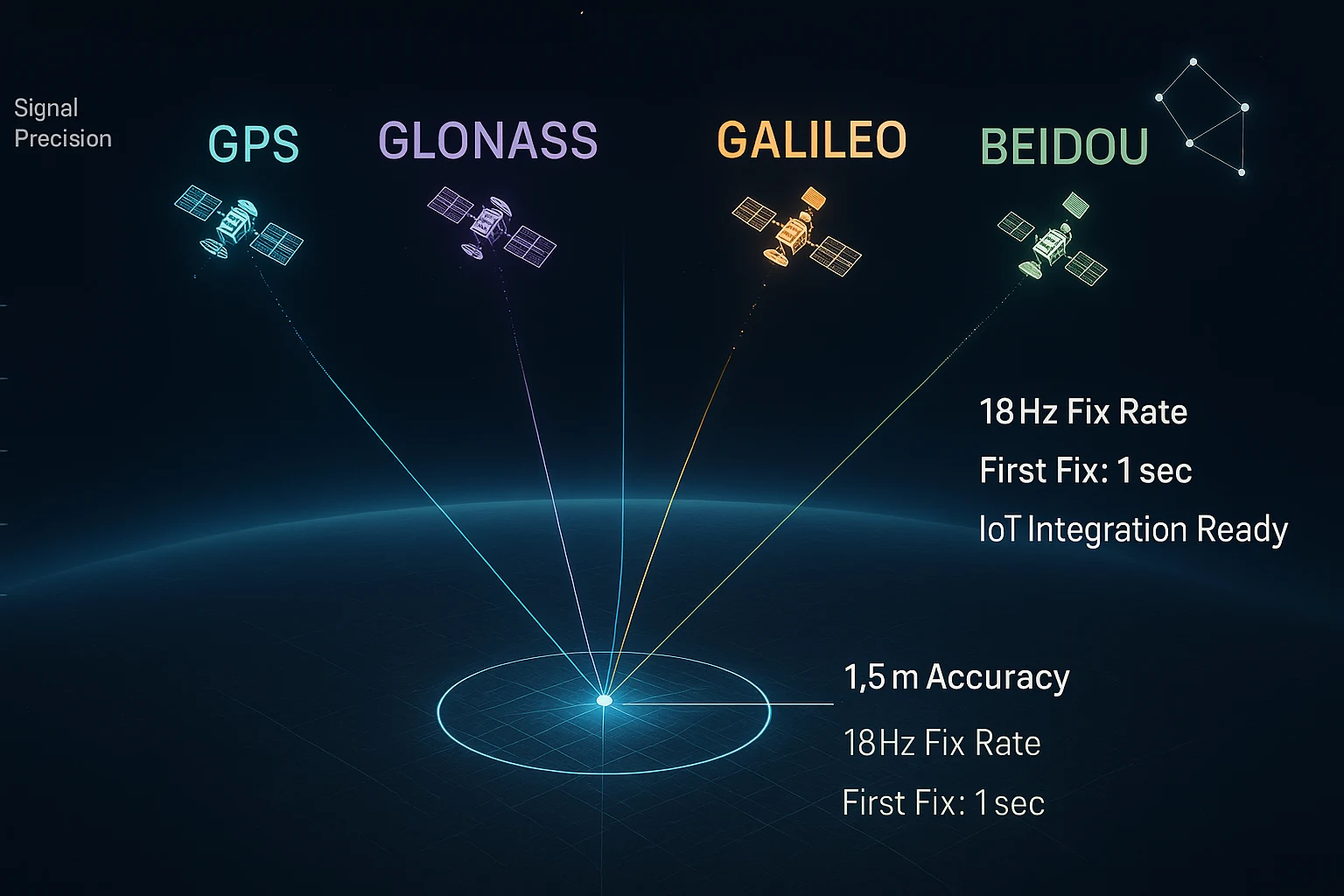

Concurrent Multi-Constellation Support
The MultiNav Pro+™ simultaneously tracks satellites from four independent constellations:
- GPS — the original US-operated global positioning system
- GLONASS — Russian global navigation satellite system
- Galileo — European precision navigation constellation
- BeiDou — Chinese global navigation system
By drawing position data from all four constellations concurrently, the module has access to significantly more satellites at any given time and in any given location on Earth. More satellites means better geometry, stronger signal averaging, and more consistent accuracy — especially in challenging environments like urban areas, forest canopies, or mountainous terrain.
Physical Design and Power Profile
The MultiNav Pro+™ measures 26mm × 22mm — small enough to integrate into wearables, compact drone flight controllers, and space-constrained IoT enclosures. Despite this compact footprint, the module integrates a high-gain chip antenna directly on-board, eliminating the need for an external antenna in most deployment scenarios.
Power consumption during active tracking runs at 25-30mA, making it highly practical for battery-powered field deployments. When paired with the RFOXiA Power/Program Kit — which delivers 24 hours of runtime from a 5-minute supercapacitor charge — the complete sensing and navigation stack becomes a genuinely field-deployable, long-endurance platform.
RF Signal Quality: Proprietary Microstrip Filter Technology
One of the less-visible but critically important design decisions in the MultiNav Pro+™ is the inclusion of advanced RF/microwave microstrip filter technology. GNSS signals are extraordinarily weak by the time they reach ground level — typically around -130 dBm. Any RF interference from nearby electronics, power supplies, or communication modules can mask these signals and degrade accuracy.
The MultiNav Pro+™'s integrated microstrip filter is tuned specifically to suppress out-of-band interference while preserving maximum GNSS signal integrity. The result is consistent, clean signal acquisition even in electrically noisy environments — exactly the kind of environments where IoT systems and drone electronics typically operate.
Interface and Integration
The MultiNav Pro+™ supports two industry-standard communication interfaces:
- UART (TX/RX) — the most common interface for GPS modules, compatible with virtually every microcontroller, single-board computer, and development platform
- I2C (SCL/SDA) — ideal when UART pins are already committed to other peripherals, or when daisy-chaining multiple sensors on a shared bus
Voltage compatibility spans 1.8V and 3.3V logic levels, making the MultiNav Pro+™ directly compatible with modern low-voltage microcontrollers, ARM Cortex-M platforms, ESP32, STM32, and similar targets without level-shifting circuitry.
This flexibility is not accidental. When you are integrating a high precision GPS module IoT system, the last thing you need is compatibility headaches between your navigation module and the rest of your hardware stack. The MultiNav Pro+™ is designed to drop cleanly into whatever platform you are building on.
For developers building with the full RFOXiA ecosystem, the MultiNav Pro+™ integrates directly with the RFOXiA Sensors Module and BLE Module, enabling a complete wireless sensing platform with GPS-validated location data streaming to the RFOXiA data network — and earning you daily rewards for verified data contributions.
Open Source Driver: Zero Barriers to Integration
Hardware is only as useful as your ability to actually work with it. RFOXiA ships the MultiNav Pro+™ with a fully open-source C language library that implements the complete NMEA standard protocol command set.
NMEA (National Marine Electronics Association) is the universally accepted standard for GPS data output. The MultiNav Pro+™ library parses all standard NMEA sentences — including GPGGA, GPRMC, GPGSV, and others — and exposes clean, structured data to your application layer.
The library is designed for immediate import into:
- Arduino IDE — the most widely used development environment in the maker community
- PlatformIO — for developers using VSCode and professional embedded workflows
- Any C/C++ toolchain — STM32CubeIDE, Keil, IAR, and others
Setup time is measured in minutes, not hours. The included Quick Start Guide walks you from unboxing to first fix with no prior GNSS integration experience required.
u-center Software: Professional Visualization and Configuration
For developers who want to go beyond basic NMEA parsing and access the full configuration and diagnostic capabilities of the u-blox MIA-M10Q chipset, the MultiNav Pro+™ is fully compatible with u-center — u-blox's professional GNSS evaluation and configuration software.
u-center provides:
- Satellite sky view — visualize exactly which satellites are in view and their signal strengths
- Real-time position tracking — watch movement plotted on a live map
- Signal quality graphs — monitor C/N₀ (carrier-to-noise density) over time for each tracked satellite
- Module configuration — adjust update rates, enable/disable constellations, configure power modes
- Data logging — capture raw GNSS data sessions for post-processing and analysis
- NMEA and UBX protocol support — access both standard and u-blox proprietary protocol commands
This is the same tool used by professional GNSS engineers during integration and validation testing. Having access to it means you can verify your module's performance, optimize its configuration for your specific use case, and diagnose any environmental interference issues with full professional-grade visibility.
Real-World Use Cases
The MultiNav Pro+™ was designed without artificial application constraints. Its combination of accuracy, update rate, compact size, and open software makes it suitable across an unusually wide range of applications:
Drone Navigation and Autonomous Flight
At 18Hz, the MultiNav Pro+™ provides flight controllers with position updates fast enough to maintain stable autonomous flight at speed. Whether you are building a long-range FPV platform, an inspection drone, or an autonomous delivery system, sub-1.5m accuracy means your drone knows exactly where it is at all times.
Precision Agriculture
Automated spraying, seeding, and harvesting equipment requires meter-level positioning to apply inputs efficiently. The MultiNav Pro+™ provides the GPS accuracy needed for agricultural guidance applications without the cost of survey-grade RTK systems.
Asset Tracking and Logistics
For high-value asset tracking — vehicles, equipment, containers — the MultiNav Pro+™ delivers location accuracy that distinguishes it from mass-market tracking hardware. Combined with RFOXiA's long-range BLE module, tracked assets can report position data over distances up to 5km without cellular infrastructure.
Environmental Sensor Networks and Data Monetization
The MultiNav Pro+™ plays a specific and important role in the RFOXiA data network. When a user deploys the Sensors Module to contribute environmental data, GPS validation confirms that the sensor is genuinely deployed outdoors at its reported location. This GPS-verified data commands premium pricing from enterprise buyers and earns contributors higher daily rewards. Accurate location data is not optional in this context — it is the mechanism that makes the entire network trustworthy.
Wearables and Personal Navigation
At 26mm × 22mm and 25-30mA active current draw, the MultiNav Pro+™ fits comfortably into wearable form factors — GPS-enabled watches, personal safety devices, sports performance trackers, and outdoor navigation tools.
Research and Academic Applications
Universities, research institutions, and field science teams conducting GPS-dependent studies benefit from the MultiNav Pro+™'s professional accuracy at a price point that fits research budgets. Whether mapping terrain, tracking wildlife, or validating sensor deployments, 1.5m accuracy and 18Hz updates provide the data quality that research demands.
Robotics and Ground Vehicles
Autonomous ground vehicles need high-frequency position updates to execute smooth path following algorithms. The 18Hz update rate of the MultiNav Pro+™ provides the temporal resolution that wheeled robot navigation requires.
The RFOXiA Ecosystem Advantage
The MultiNav Pro+™ is exceptional as a standalone module. But its full potential is realized as part of the RFOXiA wireless development ecosystem.
When paired with the BLE Module (5km ground-to-ground range, up to 20km man-to-drone), the Sensors Module (7 environmental sensors), and the Power/Program Kit (24-hour runtime from 5-minute charge), you have a complete platform for:
- GPS-tagged environmental monitoring — every data point carries verified location and timestamp
- Long-range drone telemetry — real-time position streaming to the RFOXiA Connect app over up to 20km
- Off-grid asset tracking — no cellular, no WiFi, no infrastructure required
- Data network contribution — earn daily rewards for verified GPS-validated sensor data
The RFOXiA Connect mobile app displays live GPS position on an integrated map, updated at the full 18Hz rate of the module, so operators always see exactly where their platform is in real time. And because the entire communication chain uses the long-range BLE module rather than cellular infrastructure, this system works anywhere — in the field, at sea, in remote wilderness areas, and in disaster response scenarios where infrastructure has failed.
For developers ready to build with the complete ecosystem, the RFOXiA Accurate GNSS Module is available standalone at $49, or as part of the Developer Bundle that combines all four modules at $199.
Technical Specification Summary
| Parameter | Specification |
|---|---|
| Chipset | u-blox MIA-M10Q |
| Accuracy | < 1.5 meters (CEP) |
| Fix Rate | 18Hz |
| Time to First Fix | ~1 second (hot start) |
| Constellations | GPS, GLONASS, Galileo, BeiDou (concurrent) |
| Interface | UART (TX/RX), I2C (SCL/SDA) |
| Supply Voltage | 1.8V / 3.3V |
| Current Consumption | 25-30mA (active tracking) |
| Dimensions | 26mm × 22mm |
| Antenna | Integrated high-gain chip antenna |
| Signal Filtering | RF/microwave microstrip filter |
| Certification | FCC certified |
| Software | Open-source C library, u-center compatible |
| Price | $49 |
Why FCC Certification Matters
Every RFOXiA module, including the MultiNav Pro+™, carries FCC certification. For many developers this is an afterthought — until it becomes a showstopper.
FCC certification means:
- Legal commercial deployment in the United States without additional regulatory approval
- Distribution through professional channels — DigiKey, Mouser, and similar distributors require FCC certification for listing
- Customer confidence — enterprise buyers, research institutions, and commercial operators require certified hardware
- Product liability protection — uncertified RF devices carry legal risk that certified products eliminate
For a high precision GPS module IoT application being deployed commercially or in regulated industries, working with FCC-certified hardware is not optional. The MultiNav Pro+™ meets this requirement out of the box.
Getting Started with the MultiNav Pro+™
Every MultiNav Pro+™ ships with a Quick Start Guide that walks through the complete integration process. For developers who prefer a more guided path, the RFOXiA Club Dev Hub provides:
- Complete documentation and datasheets
- Code examples and project templates
- AI Firmware Builder — describe your application in plain language, receive production-ready firmware
- Community forum with active hardware developers
- Tutorial content covering everything from basic NMEA parsing to advanced multi-constellation positioning
New members receive $10 in welcome credits on signup, which can be applied toward hardware purchases. The platform is free to access and requires no hardware to explore.
If you are ready to integrate a genuinely professional high precision GPS module IoT solution into your next project — without the professional-grade price tag — the MultiNav Pro+™ is the module you have been looking for.
Get the RFOXiA Accurate GNSS Module and start building with the precision your projects deserve.
Conclusion: Precision Navigation for Every Builder
The MultiNav Pro+™ represents exactly what RFOXiA was founded to build — professional-grade hardware technology made accessible to every developer, researcher, and builder who needs it. Sub-1.5m accuracy. 18Hz position updates. Concurrent four-constellation tracking. Open-source drivers. FCC certified. $49.
There is no other high precision GPS module IoT platform on the market that combines this specification level, this software ecosystem support, this physical compactness, and this price point in a single product.
Whether you are navigating a drone at 60 km/h, mapping a research site to meter-level accuracy, validating sensor deployments for data network contribution, or building the next generation of precision agriculture equipment, the MultiNav Pro+™ gives you the location foundation your system needs to perform.
Explore the full module, documentation, and ordering options at the RFOXiA Accurate GNSS Module product page. Join the RFOXiA Club for free access to the Dev Hub, AI firmware tools, and $10 in welcome credits — and build something that knows exactly where it is.
