Key Features and Benefits

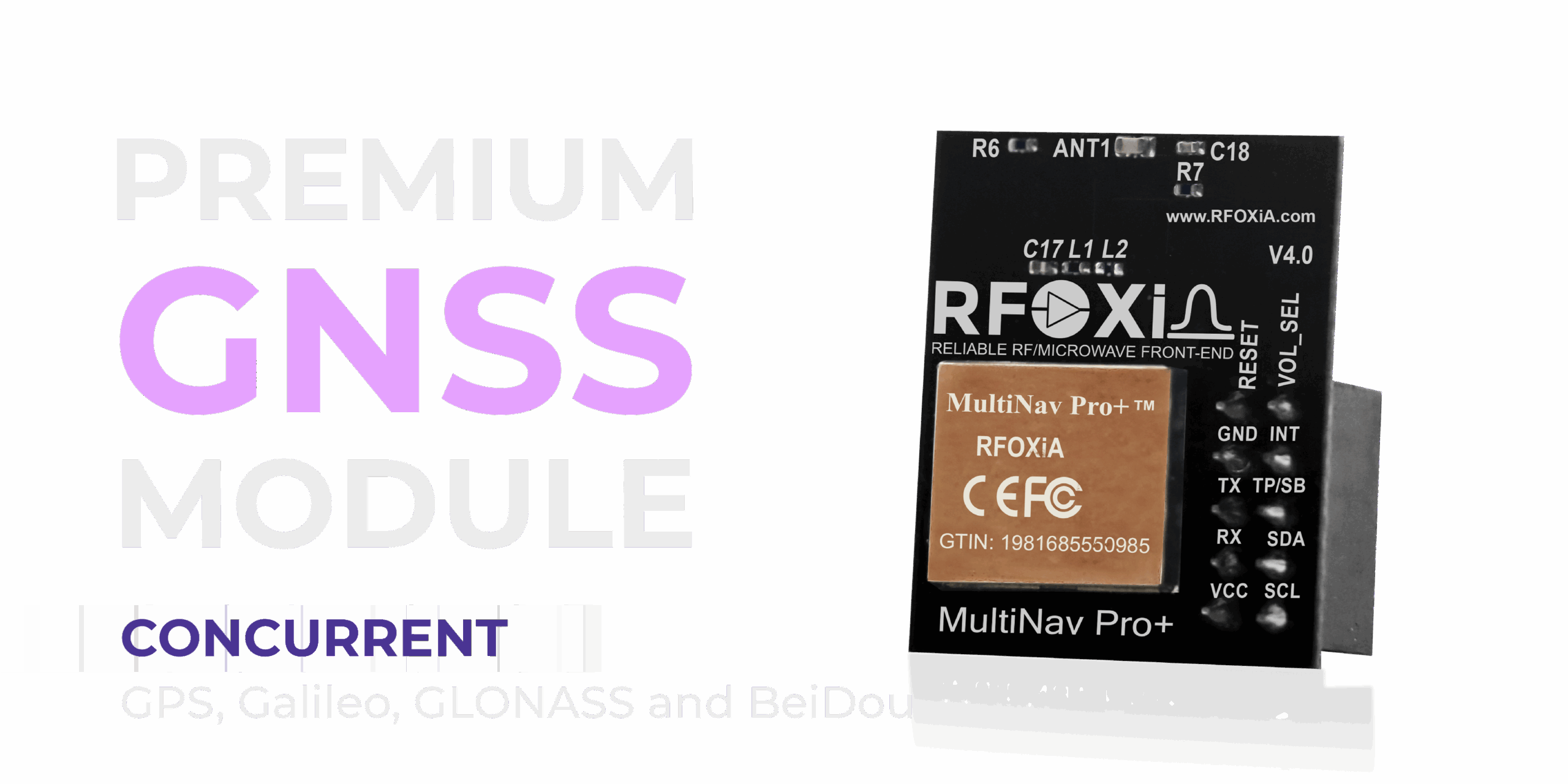

Premium GNSS Module
Designed for seamless integration into your products, the MultiNav Pro+ GNSS module is based on the u-blox MIA-M10Q, supporting concurrent GPS, Galileo, GLONASS, and BeiDou.
*Image of the GNSS Module.*
High Accuracy and Performance
Achieve premium accuracy of less than 1.5m and a high fix rate of up to 18Hz. First fix in just 1 second.
*Image representing High Accuracy.*

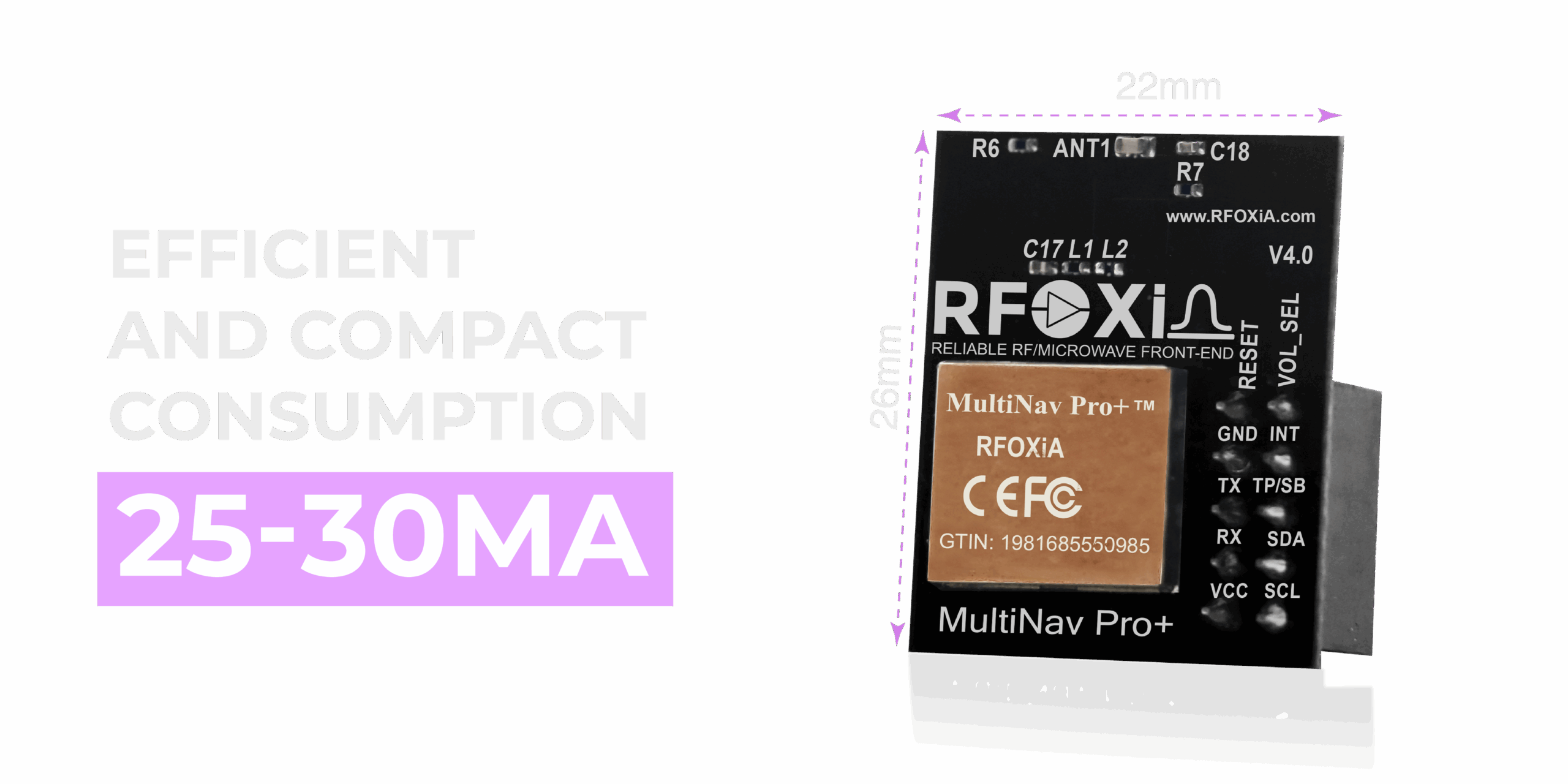

Efficient and Compact
Power-efficient multi-constellation system operates at 25-30mA. Very compact size: 26 x 22mm.
*Image of a small form factor electronic component.*
Versatile Connectivity
Easy interface with support for both UART (TX, RX) and I2C (SCL, SDA) interfaces. Versatile work voltage: 1.8V and 3.3V.
*Image of UART and I2C connection.*
Superior Signal Reception
Super precision GNSS module with sensitivity down to -168dBm. On-chip antenna with high efficiency and gain of 3.1dBi.
*Image of strong signal.*

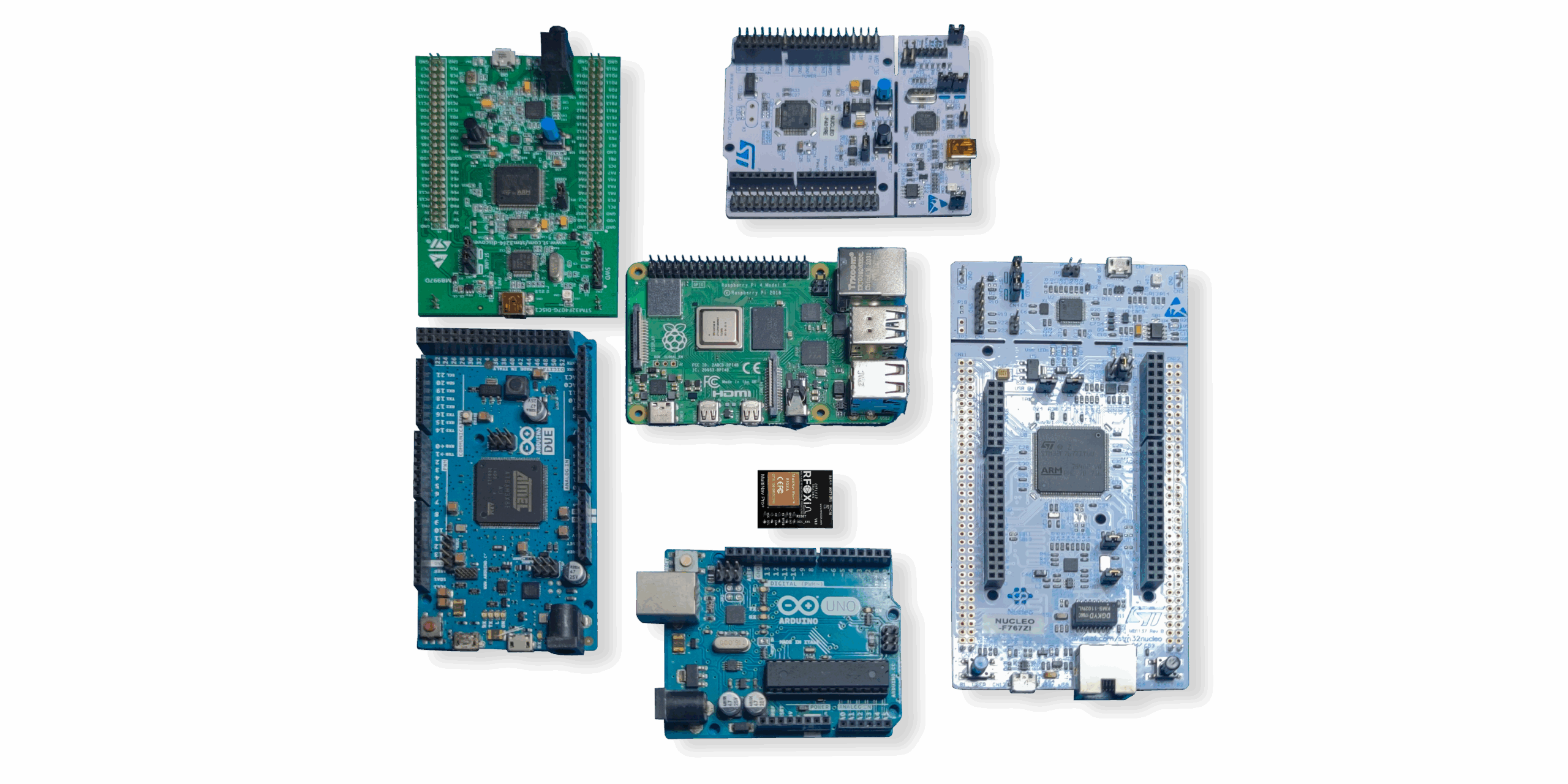

OPEN SOURCE DRIVER
Fully open-source C language library includes NMEA standard protocol commands. Super easy to import into Arduino IDE or any IDE toolchain.
- Fully open source C language library includes NMEA standard protocol commands
- Super easy to be imported into Arduino IDE, or any IDE tool chain
*Image of code snippet.*

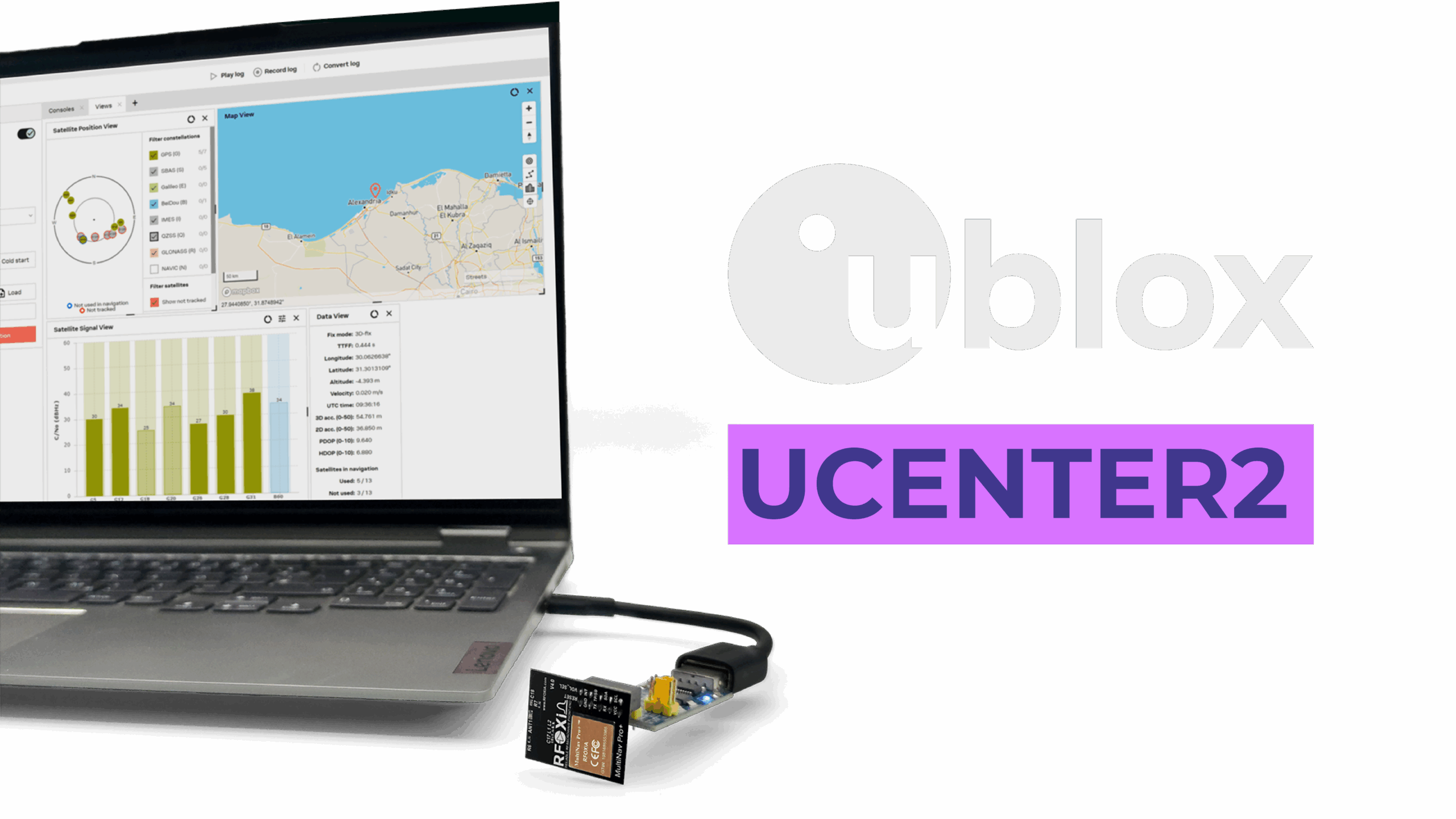

U-CENTER SOFTWARE
Friendly GUI to visualize each satellite, track movement, quick configuration, flexible user interface, powerful logging, and easy evaluation of u-blox GNSS services.
- Visualize each satellite the module is seeing
- Track your movement on the map
- Quick product configuration for key use cases
- Flexible user interface with personalized workspaces
- Powerful logging functionality for efficient development support
- Easy evaluation of u-blox GNSS services
*Image of U-CENTER software interface.*
LIMITLESS USE CASES
Drones, IOT, Wearable, Smartphones, Tracking modules, Automotive, Research, Learning and much more.
- Drones
- IOT
- Wearable
- Smartphones
- Tracking modules
- Automotive (Car, bus, train…..)
- Research
- Learning and much more
*Collage of use case images.*
