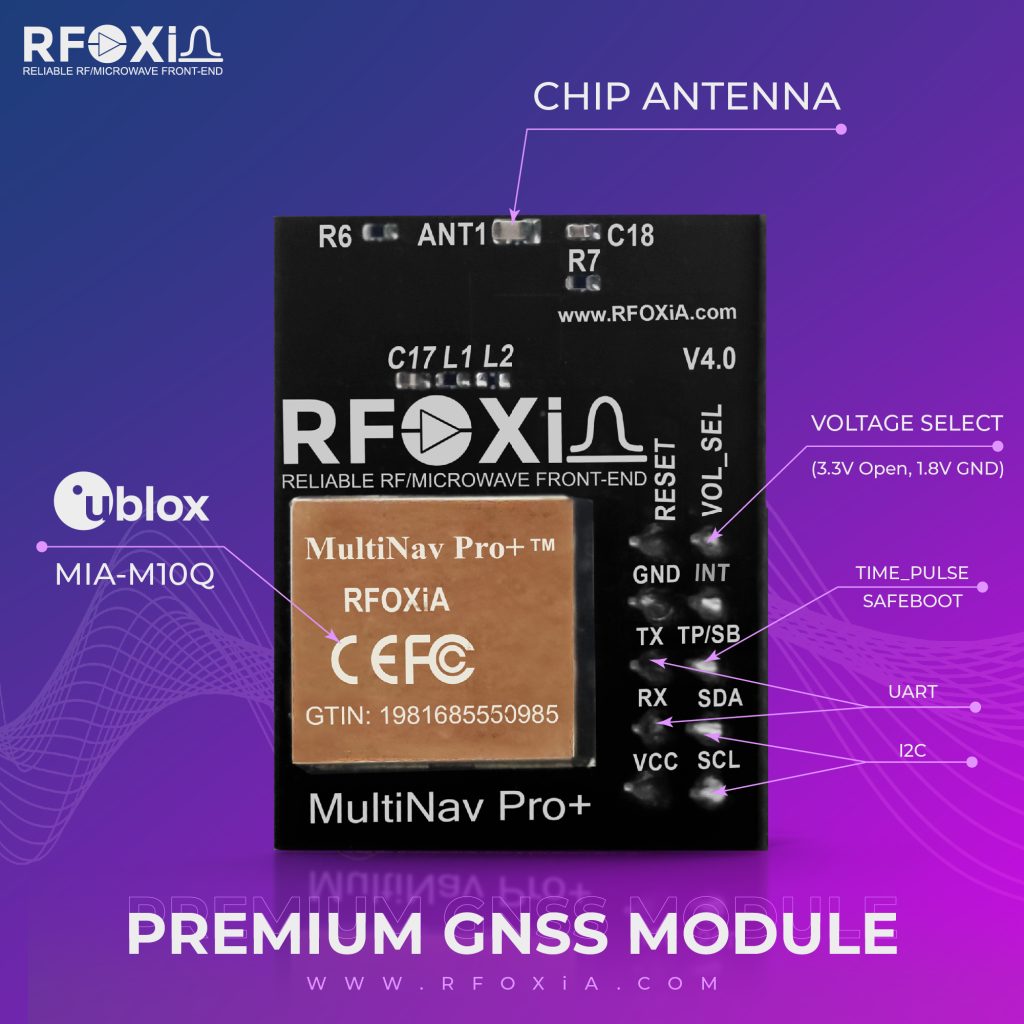

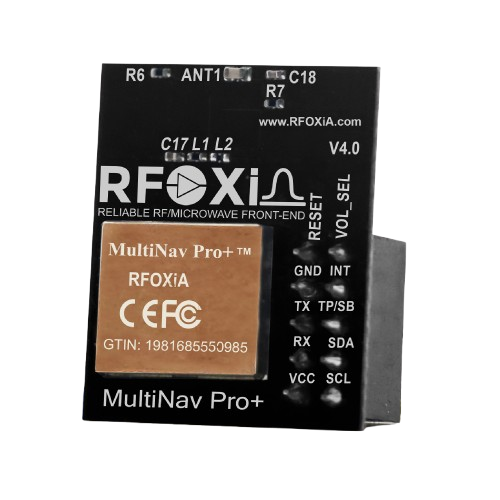

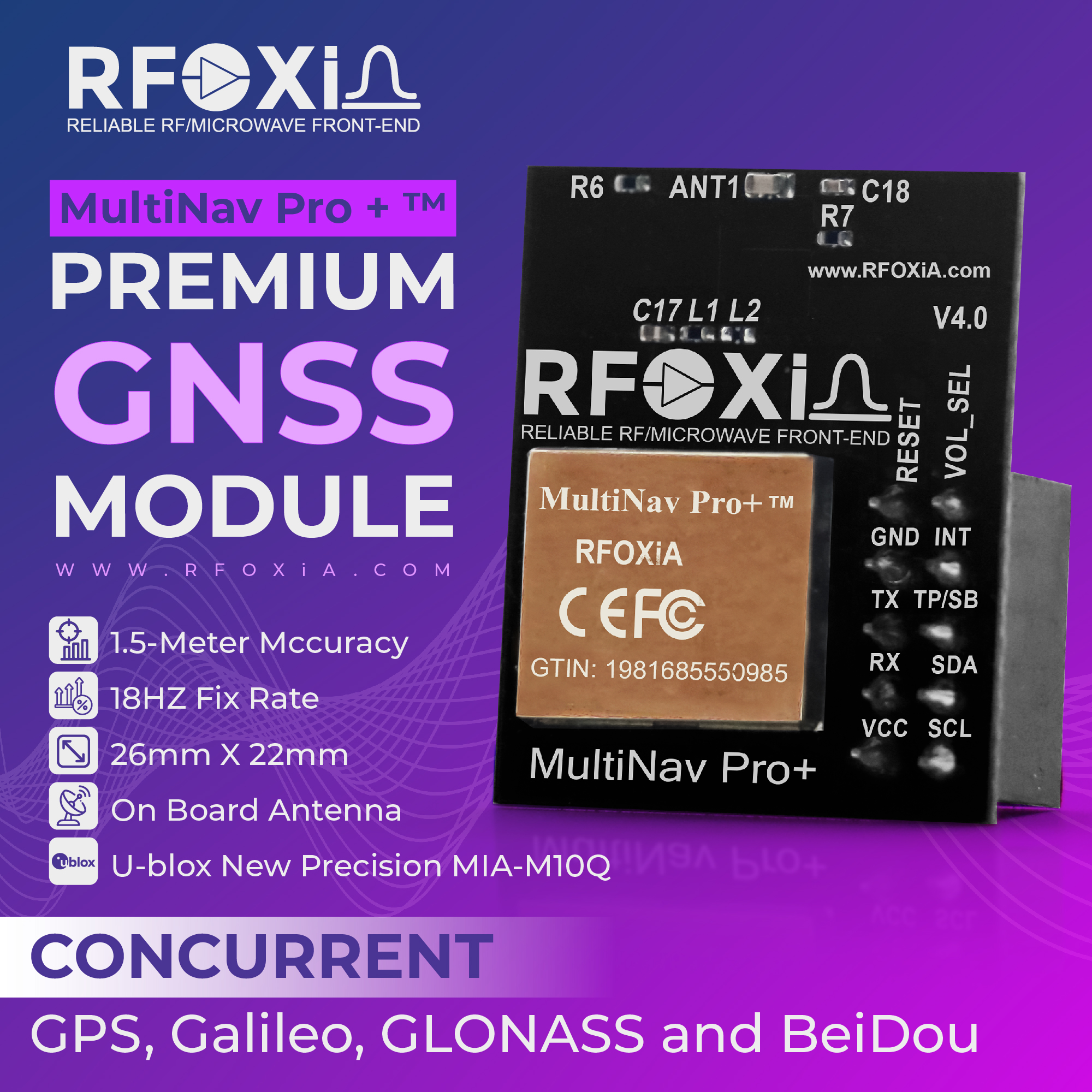

MultiNav Pro+™

P R E M I U M

Our Premium GNSS module is Designed to be part of your product, it is fully open source based on u-blox new precision MIA-M10Q, supporting concurrent GPS, Galileo, GLONASS and BeiDou

ORDER NOW

Premium BLE module

READY TO BE PART OF YOUR PRODUCCTS

Seamless Integration

Open source driver, Ready libraries.

Power efficient

Multi constellation system works with 25-30mA!

Very compact

Small 26 x 22mm

Versatile Work Voltage

1.8V and 3.3V

Premium Accuracy

Less than 1.5m

High Resolution

Up to 10Hz fix Rate (position rate 18 Times in 1 second)

Easy interface

Support Both UART (TX, RX) and I2C (SCL, SDA) interfaces

Accuracy 1.5m

Adjustable fix rate up to 18 HZ for super tracking accuracy

High Path Resolution

Premium BLE module

Premium GNSS module

Experience our revolutionary RF Design

Experience our revolutionary RF filter technology

Premium BLE module

FULLY INTEGRATED MODULE INCLUDES:

1

Receive signal easily in worst case scenario

Super Precision GNSS module with sensitivity down to -168dBm

2

On-Chip antenna with exceptional high efficiency and gain of 3.1dBi

No need for external bulky patch antenna with weird cable!

3

Latest RF technology used

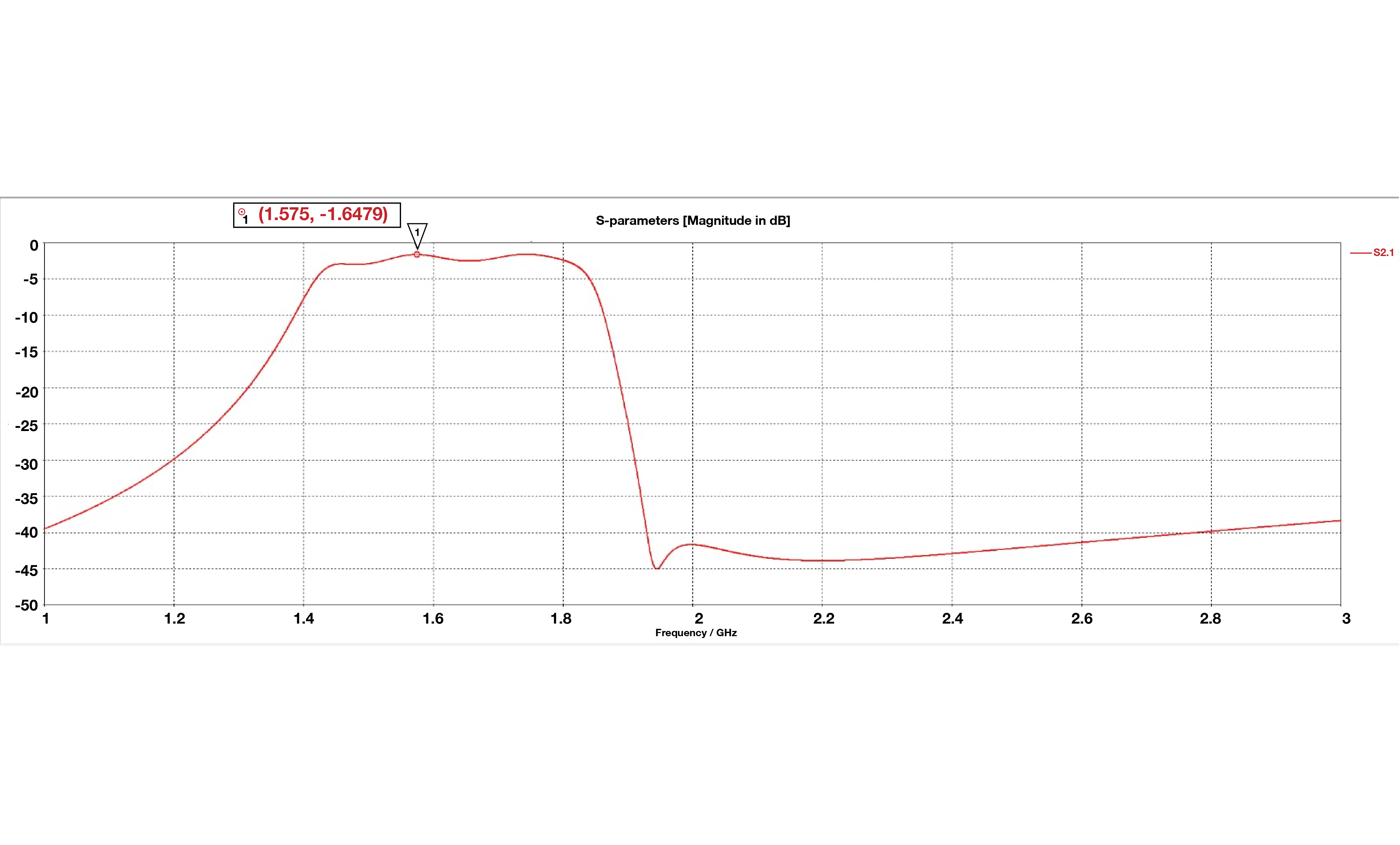

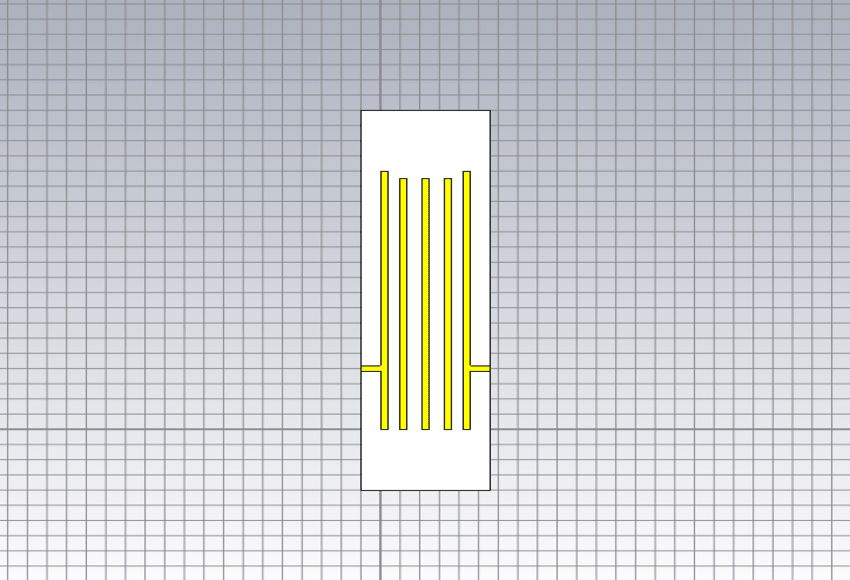

Tested with Bandpass filter from RFOXiA 50ohm ultra-stable using new microstrip interdigital filter technology.

4

On module accurate RTC clock source

Every thing you need already integrated!

5

Optimized for best performance

Impedance matching and tuning circuits for the antenna already perfectly adjusted for the module and can be tuned in case the module is integrated in another product case

6

Standard connection interface supporting pin headers or directly soldering the module

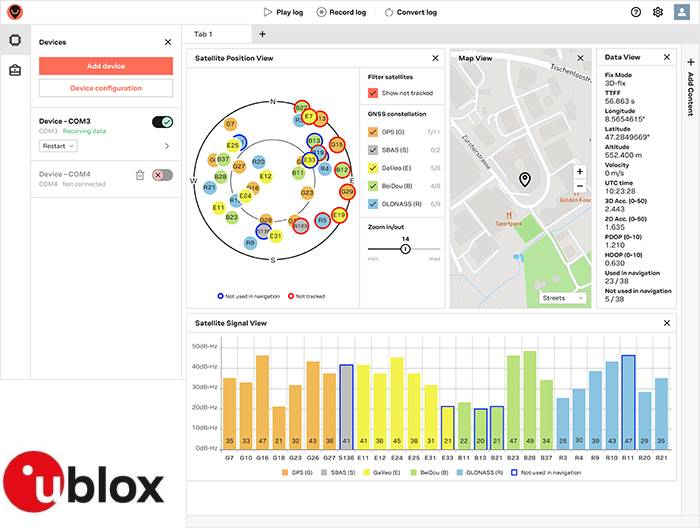

U-CENTER SOFTWARE

Friendly GUI to visualize each satellite the module is seeing
Track your movement on the map
Quick product configuration for key use cases
Flexible user interface with personalized workspaces
Powerful logging functionality for efficient development support
Easy evaluation of u-blox GNSS services

OPEN SOURCE DRIVER

Fully open source C language library includes NMEA standard protocol commands
Super easy to be imported into Arduino IDE, or any IDE tool chain

LIMITLESS USE CASES

Drones
IOT
Wearable
Smartphones
Tracking modules
Automotive (Car, bus, train…..)
Research
Learning

Premium BLE module

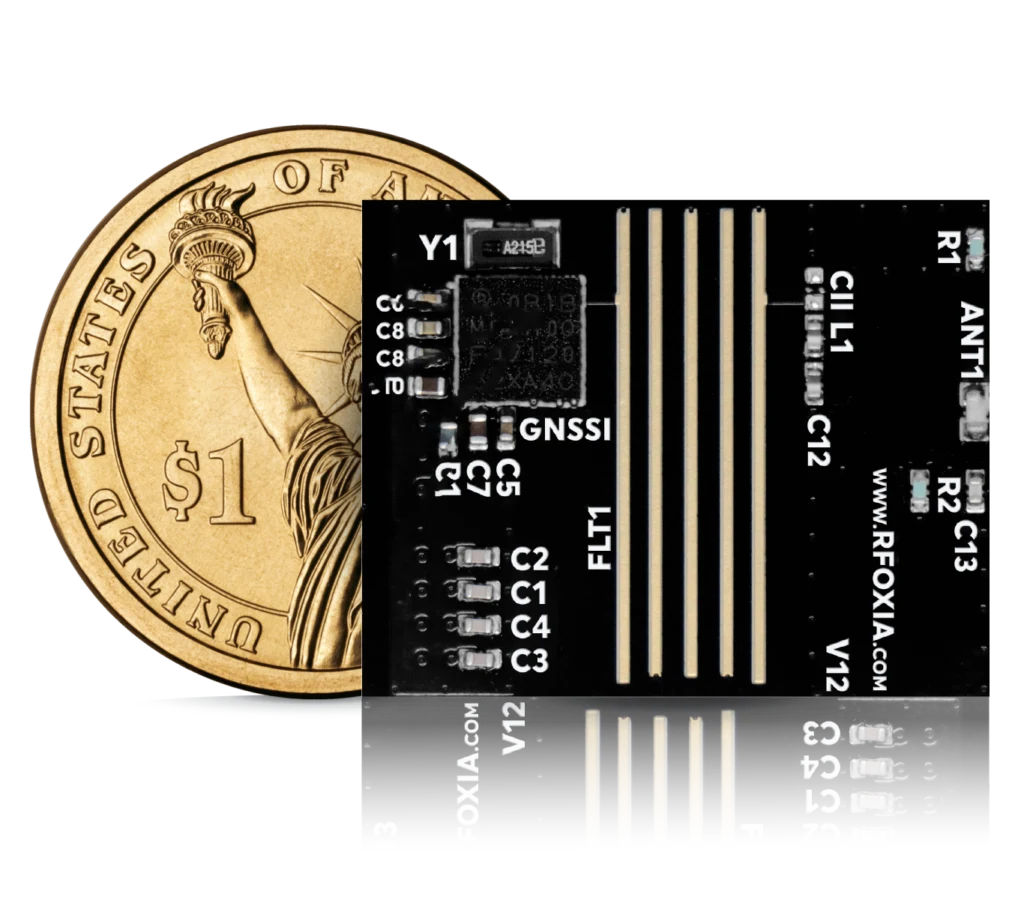

DIVING INTO THE MODULE

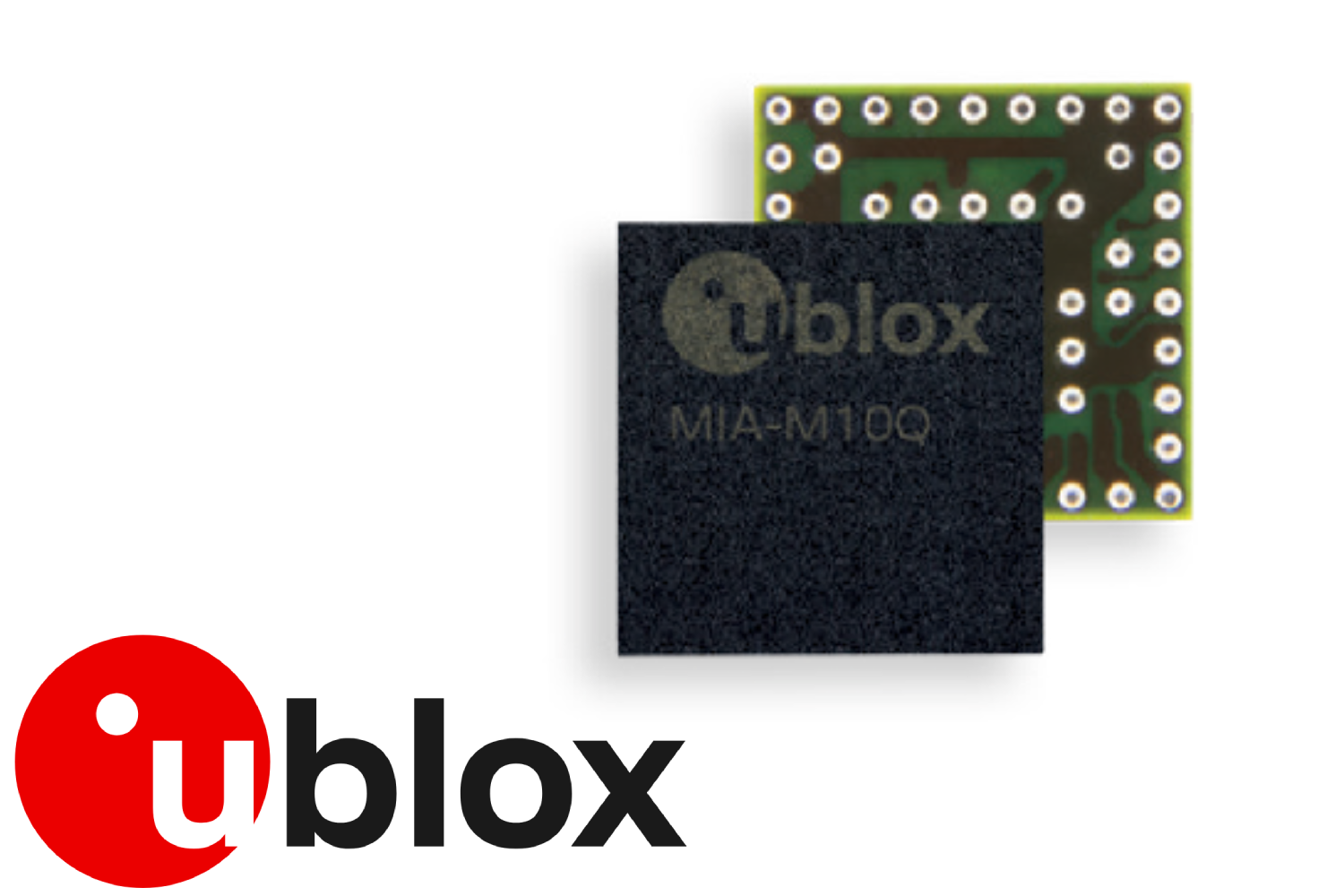

MIA-M10Q

u-blox brand new precision GNSS module
Supports 4 concurrent GNSS (GPS, GLONASS, Galileo, BeiDou)
Fix rate up to 18Hz
1.5m accuracy
Sensitivity -168dBm
Acquisition needs 1 second @hot start
NMEA standard protocol commands

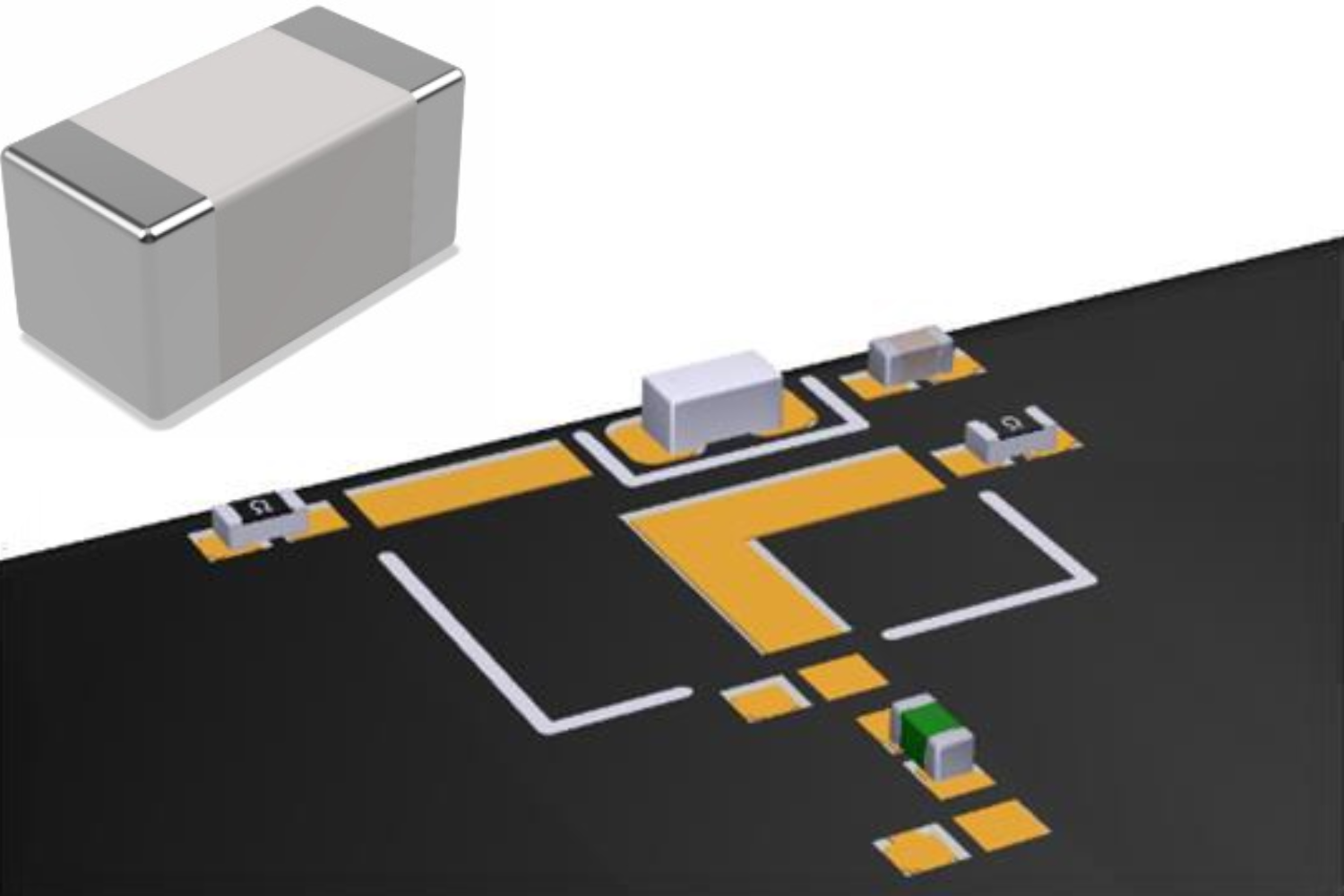

SZC-C-1G18 antenna

SYNZHEN new GNSS antenna
1559-1609MHz
Peak gain 3.1dBi, SWR<1.7
High performance yet ultra-small form factor >75% efficiency
Ideal for small designs and wearable
Size 1.6 x 0.8 x 0.8mm
Highly Resistant to detuning
Clean resonance with no unwanted out of band response
Required clearance area 7 x 6mm
