20km Bluetooth Module: The Long-Range BLE Solution That Finally Closes the Gap
RFOXiA Long Range Bluetooth Module
The 20km Bluetooth Module Builders Have Been Waiting For
For years, hardware developers, drone builders, and IoT engineers have faced the same frustrating reality: standard Bluetooth modules top out at 80 to 100 meters, while the professional-grade long-range wireless systems that actually perform are locked behind five-figure price tags and government procurement processes. There has been nothing in between — until now.
The MultiNav Pro+ BLE from RFOXiA is a 20km Bluetooth module (and well beyond) that shatters this artificial barrier. When paired with a smartphone, it achieves over 5km of range at ground level. In a man-to-drone configuration, that same module reaches 15 to 20km. And when two MultiNav Pro+ BLE modules are mounted on aerial platforms — drone-to-drone — the range extends past 50km. All of this at $59 for two units.
This is not an incremental improvement. This is a completely different category of device, priced for every maker, developer, and engineer who ever needed range without the military budget to match.
Why Commodity Bluetooth Modules Fail at Scale
If you have ever tried to push a standard BLE module past 100 meters, you already know the story. The chip manufacturers spec their modules for indoor consumer use — smartphones connecting to earbuds, smart home devices talking to hubs, wearables syncing with apps. The RF front-end is designed for milliwatt-level transmission in controlled environments, and the receiver sensitivity is tuned for short paths with minimal noise.
Take that same module outdoors, add real-world interference, multipath reflections from terrain, and the signal-absorbing properties of open air at anything beyond 200 meters, and performance collapses. You are not dealing with a gentle rolloff — you are dealing with a cliff edge.
The gap between commodity BLE and military-grade long-range systems is enormous in both capability and cost. Standard modules from major silicon vendors reach 80 to 100 meters on a good day. Dedicated long-range platforms like DTC BluSDR or Taisync-class systems start at $5,000 and go well above $50,000 for full kits. There is simply no professional-grade, accessible 20km Bluetooth module available on the open market at any reasonable price.
That is the specific problem RFOXiA was built to solve.
How the MultiNav Pro+ BLE Achieves 20km and Beyond
The extraordinary range of the MultiNav Pro+ BLE is not a firmware trick or a marketing claim with asterisked fine print. It is the product of deliberate, professional RF hardware engineering applied to a platform that is genuinely optimized for long-distance wireless communication.
Several hardware decisions combine to produce the range numbers:
Optimized RF Front-End with External Amplifiers Unlike commodity BLE chips that integrate a minimal RF stage directly on-die, the MultiNav Pro+ BLE uses an external RF front-end with amplification. This significantly increases effective radiated power and improves receiver sensitivity — the two factors that determine maximum achievable range in any wireless link.
Advanced Receiver Sensitivity Receiver sensitivity determines the weakest signal a module can still decode reliably. Lower sensitivity numbers (more negative dBm values) mean longer range. The MultiNav Pro+ BLE is engineered for exceptional sensitivity, allowing it to pull useful data out of signals that standard BLE chips would discard as noise.
High-Gain Integrated Chip Antenna The integrated high-gain chip antenna delivers strong signal performance without requiring an external antenna assembly. The antenna geometry and placement on the 57mm × 47mm board are optimized for real-world deployment, including the directional characteristics relevant to aerial applications.
STM32WB07CCV6 Core Processor At the heart of the module is STMicroelectronics' STM32WB07CCV6, a powerful dual-core processor that manages the BLE stack independently of user application code. This architecture ensures that radio management, connection maintenance, and protocol handling never compete with your application logic for CPU cycles — resulting in consistent, low-latency performance at the edge of range.
Integrated Accurate RTC For time-sensitive applications like navigation, synchronized sensor logging, and time-division multiplexing across multiple nodes, the integrated RTC crystal provides precise timing. This is essential for maintaining coherent data streams across distributed systems operating at the range limits of the link.
Range by Configuration: Understanding What 20km Actually Means
The range specifications for the MultiNav Pro+ BLE are scenario-dependent, and understanding the geometry matters for application planning.
Ground-to-Ground (5km+) When the BLE module is paired with a user's smartphone and the second module is paired with another smartphone at ground level, the link achieves over 5km. This is the most challenging scenario because ground reflections, terrain obstructions, and human body absorption all degrade the link budget. 5km ground-to-ground with a single BLE module pairing is a genuinely extraordinary result.
Man-to-Drone (15–20km) When one module is on the ground connected to a controller or smartphone, and the second module is mounted on an aerial platform, the line-of-sight path dramatically improves the link budget. Ground reflections at the aerial end are eliminated, and the elevated antenna gains a clear path back to the ground station. This is the primary use case for drone builders and FPV pilots — a 20km Bluetooth module link between operator and aircraft.
Drone-to-Drone (50km+) With both modules in the air, ground reflections are essentially eliminated from both ends of the link. The clean line-of-sight path between elevated nodes allows the full RF performance of the module to be expressed, achieving over 50km of reliable communication. This configuration is directly relevant to swarm robotics, relay chain deployments, and long-distance aerial survey operations.
2Mbps Data Rate: Fast Enough for What Actually Matters
Range alone is not sufficient for serious applications. A wireless link that extends 20km but delivers only a few hundred kilobits per second would be unsuitable for drone telemetry, live sensor streaming, or any control application requiring low-latency bidirectional communication.
The MultiNav Pro+ BLE supports up to 2 Mbps data rate, which is the maximum data rate defined in the Bluetooth Low Energy specification. In practice, this means:
- Full-resolution GNSS telemetry streams without compression
- Real-time accelerometer and gyroscope data for stabilization feedback
- Environmental sensor data from temperature, humidity, pressure, and air quality sensors simultaneously
- Motor control commands with the sub-10ms latency required for responsive flight control
- Bidirectional communication — commands down, telemetry up — on the same link
For drone builders running the full RFOXiA ecosystem stack, this bandwidth is sufficient to operate a complete autonomous or semi-autonomous aerial system at ranges no commodity BLE link can approach.
Seamless Ecosystem Integration: Built to Connect with Everything
The MultiNav Pro+ BLE was designed from the beginning as one component in a complete modular ecosystem, not as a standalone product. Four dedicated interfaces on the module enable direct connection to the other elements of the MultiNav Pro+ platform without any custom wiring or protocol translation.
The four interfaces are:
GNSS Interface Direct connection to the MultiNav Pro+ GNSS module, which delivers 1.5-meter accuracy at an 18Hz fix rate. This fix rate is specifically significant for drone applications where fast-moving platforms require position updates at speeds that consumer GPS receivers cannot provide. The GNSS data flows through the BLE module's wireless link in real time, giving the ground operator live position data on the RFOXiA Connect app map view.
Sensors Interface Connection to the MultiNav Pro+ Sensors module, which integrates seven sensors on a single board: temperature, humidity, air pressure, air quality, accelerometer, gyroscope, and magnetometer. All seven data streams can be transmitted over the 2Mbps BLE link simultaneously, enabling complete environmental and inertial awareness from a remote platform.
Motors and Battery Management Interface Direct integration with motor controllers and battery management systems enables the BLE module to serve as the primary control link for robotic and aerial platforms. Motor commands from the RFOXiA Connect app's PS5-style controller interface translate through this interface to physical actuators.
Programming Interface The integrated SWD programming interface allows direct firmware upload and debugging without removing the module from its installation. Combined with the AI Firmware Builder on RFOXiA Club, this means you can generate new firmware, flash it over SWD, and iterate rapidly in the field.
This is what separates the RFOXiA Long Range Bluetooth Module from any other BLE product on the market. It is not a module — it is a platform node.

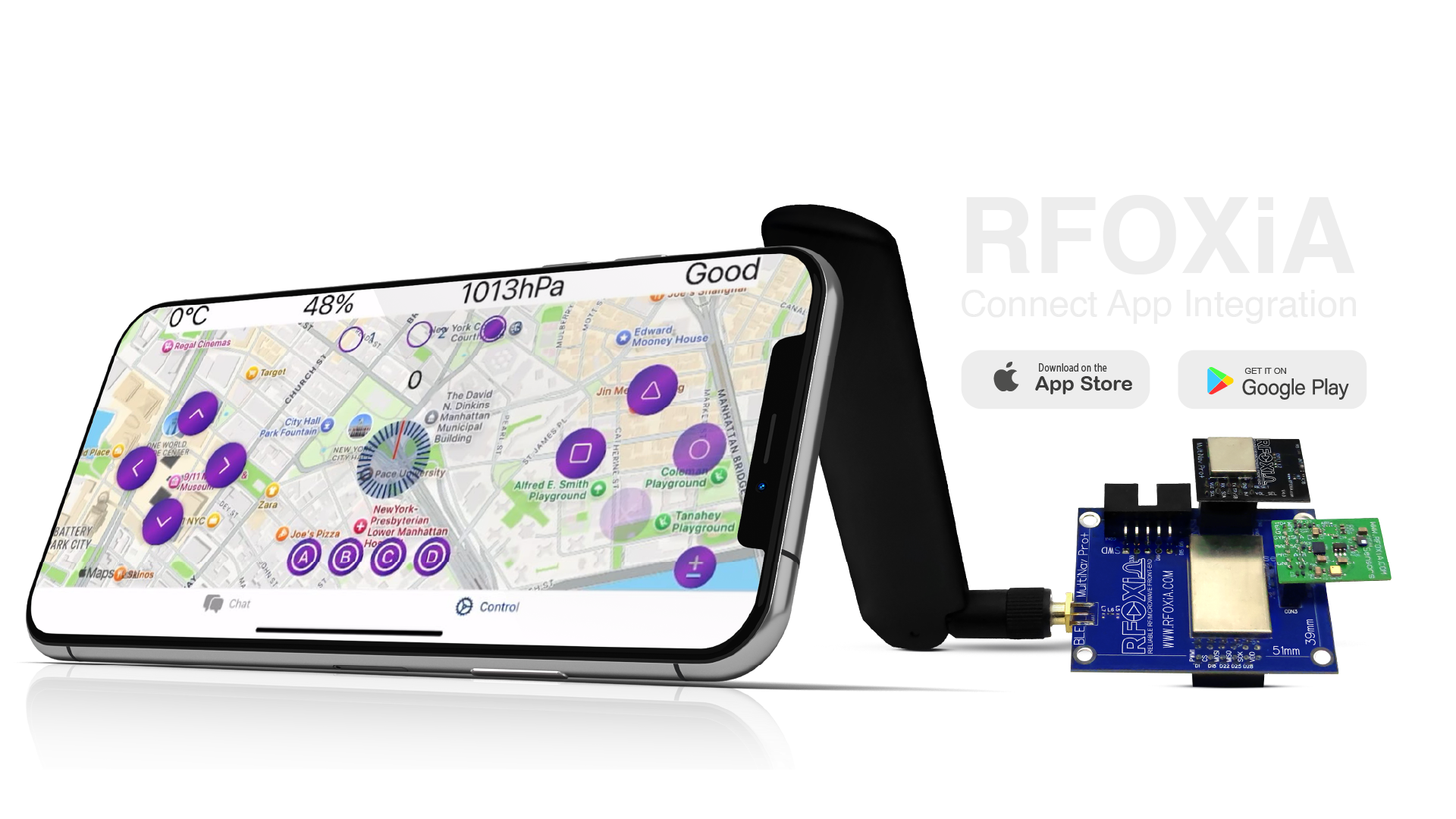

The RFOXiA Connect App: Control at 20km
Hardware capability requires a software interface to become useful. The RFOXiA Connect app provides exactly that — a professional-grade control and monitoring environment that works completely without internet connectivity.
The app's Control Screen presents a PS5-style controller interface for drone and robot command, a live map with real-time GPS tracking from the GNSS module, and a live sensor data display showing all seven sensor streams as they arrive from the remote platform. The entire interface is designed for single-operator use in the field, with the phone as the only required piece of ground equipment.
The app's Chat Screen uses the BLE modules as communication nodes for internet-independent mesh messaging between multiple RFOXiA users. This function has direct applications in disaster response operations, remote expedition teams, field research deployments, and any environment where cellular or satellite infrastructure is unavailable or compromised.
The app is available on Android now, with iOS App Store approval in process. The control interface pairs directly with the BLE module via Bluetooth on the phone, and all communication between the phone and the remote platform travels over the long-range BLE link — the same link that reaches 20km in man-to-drone configuration.

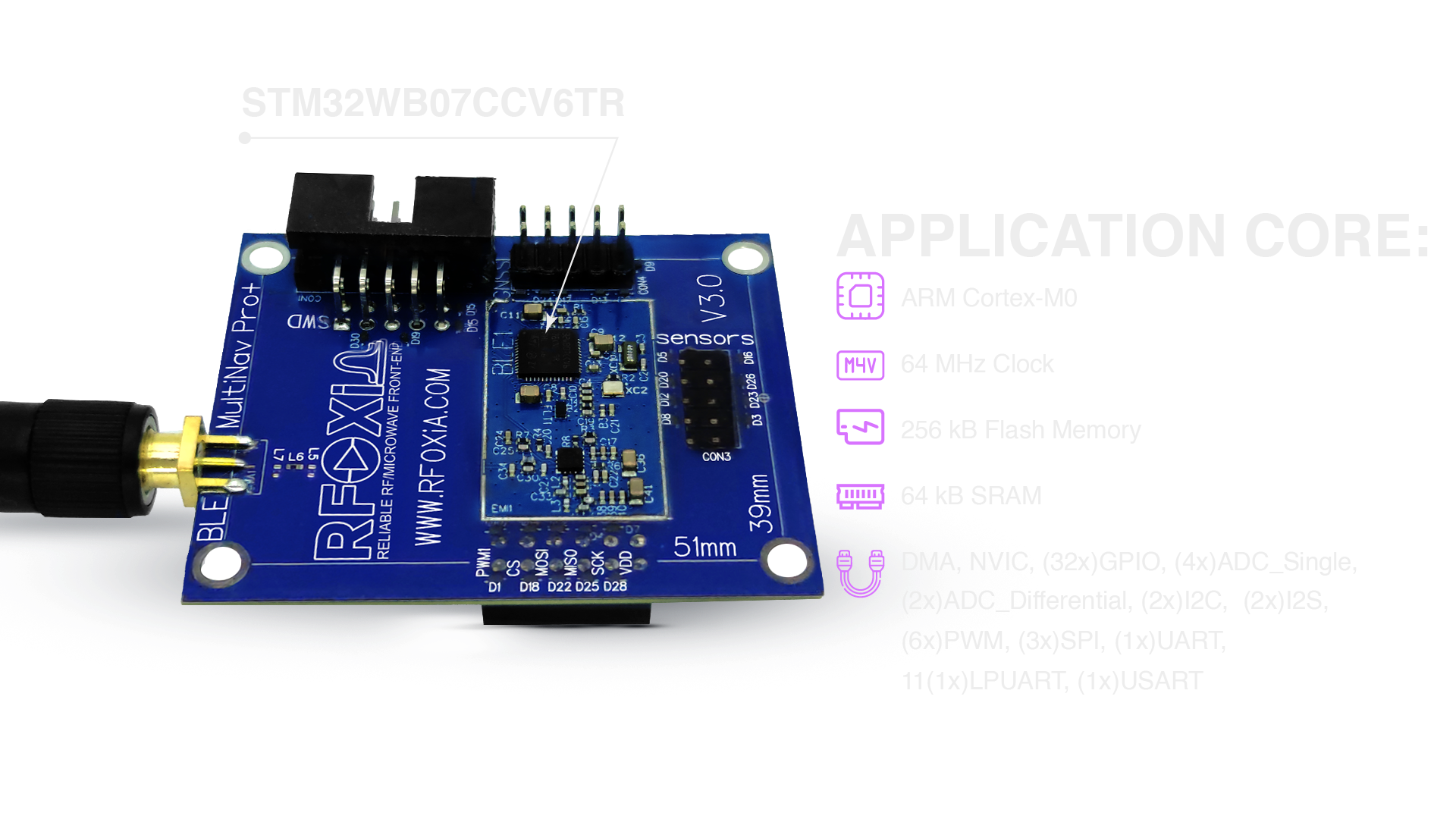

The Processing Core That Makes It All Work
The STM32WB07CCV6 at the heart of the MultiNav Pro+ BLE is not a commodity wireless microcontroller. It is a dual-core, multi-protocol wireless SoC from STMicroelectronics that isolates the radio stack on a dedicated processor core, leaving the application core free to run your code at full speed without radio interrupts degrading performance.
This matters in real deployments. When you are running GNSS parsing, sensor fusion, motor control, and BLE stack simultaneously, resource contention on a single-core architecture creates latency spikes and missed deadlines. The STM32WB07CCV6 eliminates this architectural weakness entirely.
Combined with the open-source programmability via SWD and the AI Firmware Builder on RFOXiA Club, the processing core enables developers to build genuinely complex applications on the platform without the firmware development timeline that would normally be associated with a project of this technical depth.
Open Source, FCC Certified, and Ready to Ship
Two credentials matter most when evaluating any hardware module for a serious project: regulatory certification and open access to the firmware and source code.
The MultiNav Pro+ BLE carries FCC certification — the regulatory credential required for legal deployment in the United States and recognized by distributors, enterprise customers, and regulatory bodies internationally. This is not a module operating in a legal grey area. It is a certified radio device ready for commercial deployment.
The module is also fully open source and programmable via SWD. You are not locked into RFOXiA's firmware, the RFOXiA Connect app, or any specific application model. The source code is available, the programming interface is accessible, and the hardware is documented for full custom development. If you need to run a completely proprietary application on a 20km Bluetooth module, the MultiNav Pro+ BLE supports that.
For builders who want to accelerate development rather than start from zero, the AI Firmware Builder on RFOXiA Club generates complete, production-ready firmware from plain-language descriptions of your application. Describe what you want to build, receive full source code, flash it over the SWD interface, and iterate in hours instead of months.
The RFOXiA Long Range Bluetooth Module is available now at $59 for two units, with inventory in stock and ready for immediate fulfillment.
Physical Specifications and Design
The MultiNav Pro+ BLE measures 57mm × 47mm with a fixing frame of 54mm × 34mm and corner mounting holes at each corner. This footprint is deliberately sized for integration into airframes, enclosures, and custom carrier boards without requiring unusual accommodations.
The 140mm antenna element is the largest single dimension of the assembly, and its placement is optimized for performance in both horizontal and vertical orientation — relevant for drone installation where antenna orientation relative to the flight path affects link consistency.
The module's robust construction is designed for field deployment in conditions that consumer electronics do not anticipate: vibration from rotary or fixed-wing aircraft, temperature variation across altitude ranges, and the mechanical stress of integration into working machines rather than laboratory benches.
Who Is the MultiNav Pro+ BLE For?
The 20km Bluetooth module capability of the MultiNav Pro+ BLE opens practical applications across several communities:
Drone Builders and FPV Pilots A 15 to 20km man-to-drone control link that operates independently of cellular infrastructure, FAA tower assignments, or commercial RC link subscriptions. The same module that handles control handles telemetry — position, sensor data, battery status — over the same link simultaneously.
Robotics Engineers Ground robots operating in environments where cellular coverage is unavailable or inappropriate. Mining sites, agricultural fields, disaster zones, and research deployments all share the requirement for reliable long-range communication that does not depend on external infrastructure.
IoT Developers Long-range sensor network deployments where the cost of cellular modems or LoRaWAN infrastructure is prohibitive. The BLE Chat functionality enables mesh network topologies that route data across multiple nodes without any cloud dependency.
Field Researchers Environmental monitoring, wildlife tracking, and field instrumentation at ranges that commodity wireless cannot support. The integration with the Sensors module enables complete environmental monitoring stations that transmit data to a base node at ranges no other BLE product approaches.
Disaster Response and Emergency Operations Internet-independent mesh communication using the BLE Chat feature. When cellular towers are down, the MultiNav Pro+ BLE network still works. Multiple units deployed across a response area create a communication backbone that operates on battery power with no infrastructure dependency.
The Data Network: Your Module Working While You Sleep
Beyond its role as a control and communication link, the MultiNav Pro+ BLE module is a gateway to the RFOXiA data network — a distributed environmental monitoring platform that pays contributors for verified sensor data.
When you deploy a complete RFOXiA ecosystem with the Sensors module and GNSS module outdoors, your node contributes temperature, humidity, pressure, and air quality data to a network that aggregates hyper-local, high-resolution environmental data for sale to enterprise buyers: agricultural technology companies, insurance and reinsurance firms, logistics operators, and smart city developers who cannot obtain this resolution from public weather APIs.
Contributors earn daily rewards for verified complete data sessions. The BLE module's long-range capability means your sensor node does not need to be adjacent to your base station — it can be deployed at range and still maintain a reliable uplink.
Get the MultiNav Pro+ BLE Today
There is no other 20km Bluetooth module available at this price point. There is no commodity BLE product that comes within 200 times of these range specifications. There is no direct competitor in the accessible hardware market that combines this range, this data rate, this ecosystem integration, and this certification status at $59 for two units.
The MultiNav Pro+ BLE is FCC certified, in stock, and shipping now.
If you are building something that needs to go farther than Bluetooth has ever gone before — drone control at 20km, sensor networks across kilometers of terrain, internet-independent mesh communication for field teams — this is the module that makes it possible.
RFOXiA Long Range Bluetooth Module — explore the full specifications, order your pair, and join the community of builders already deploying the MultiNav Pro+ BLE in the field.
Join RFOXiA Club free and claim your $10 welcome credit toward your first order. Link in bio.
Written by: Moamen Mohamed LinkedIn
